BeebMaster - US BBC Model B


US BBC Model B
Speech

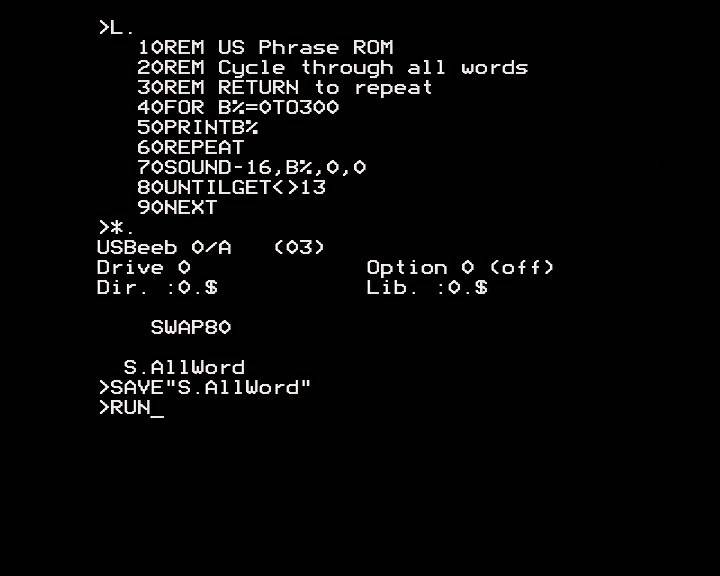

I made a small improvement here, any keystroke now repeats the word, apart from RETURN, which moves on to the next word-number. This was because I couldn't always make out what Jack Benny was saying the first time.

There is a special "speech" syntax for the SOUND command. Normally, as you know, it's

SOUND channel, amplitude, pitch, duration

but for operating the speech system, it's

SOUND speech command, data, 0,0

There are four sound speech commands - say word in Phrase ROM n using its word number, say word in Phrase ROM n using its absolute ROM location, initialise and send speech data from RAM to speech processor, send subsequent speech data from RAM to speech processor.

Here we use the first command - which is actually &FFFn. UK Phrase ROM A, the only one ever issued at home, is allocated Phrase ROM number 15, or &F, so the command to operate it is &FFFF, more commonly written as -1. We have to use -16 for the US ROM because it has Phrase ROM number 0, which gives us &FFF0, or -16.

I'm sure I don't need to mention that I've soon put my new 118-file disc to good use!
