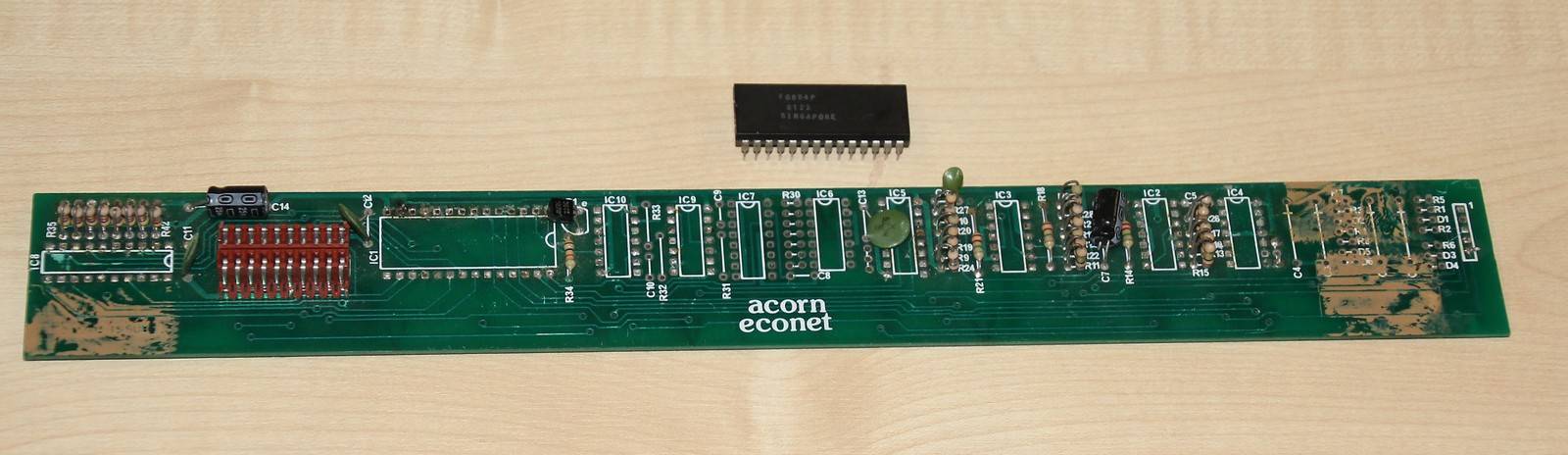

The issue 1 board is a rectangular strip which is fitted inside the Atom, using the connector towards the left hand end. This one has had all the ICs removed, but there is a 6854 ADLC which goes at IC1.
