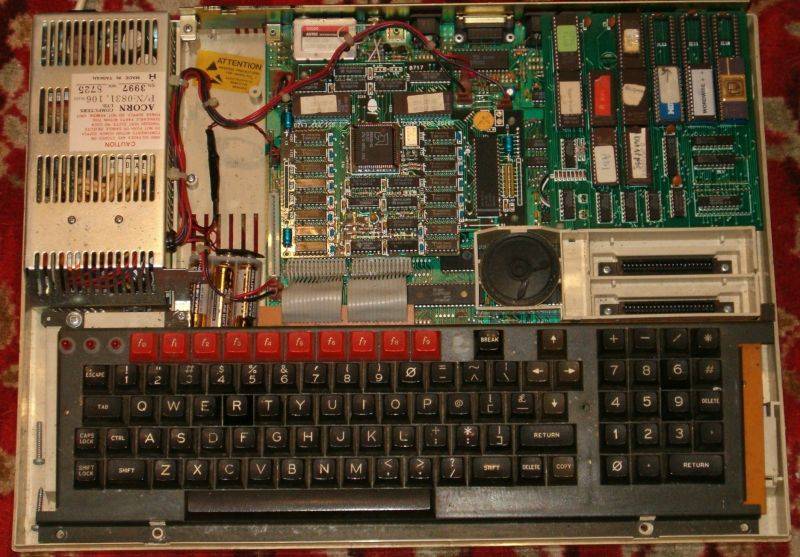

This is a picture of my spare Master 512 with the lid off. The 80186 co-processor board fits in the same place as the 65C102.

This machine also has a Morley Masterboard ROM Expansion Board fitted.
